Engineering Update - January 2017

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations.

Unfortunately, I have to start this report with some very un-welcome news. Chris Collins, one of the 2 Llangollen Railway Engineering engineers that is working on The Unknown Warrior has suffered a heart attack and has subsequently spent some time in hospital. I am sure everyone will join us in wishing Chris a speedy recovery and look forward to seeing him back at Llangollen as soon as possible.

Engineering Update - December 2016

Locomotive Frame Assembly

As we work towards our target to be complete for 11th November 2018, the amount of work taking place at locations across the country is rising.

Engineering Up-date - October 2016

Locomotive Frame Assembly

Work continues on the construction of 'The Unknown Warrior' at number of locations.

Engineering Up-date - July 2016

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations.

Members listen to the presentation during Members Day at Llangollen Works, 25th June. Photo – Kevin West

Work is progressing at Llangollen following on from the locomotives return at the end of March.

Engineering Up-date walk round video

Our Chief Engineer has been playing with his new camcorder and made this walk round up-date video of the loco build.

https://www.youtube.com/watch?v=yvLwEUJOW_Q

Engineering Up-date March 2016

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations.

Following on from the fitting of the Bogie at Tyseley on 4th February, work has continued on preparations to fit the Valve and Cylinder Liners.

The Unknown Warrior now a 4-6-0

Following the fitting of the bogie to The Unknown Warrior at Tyseley Locomotive Works in early February 2016 we are pleased to be able to publish these photos of The Unknown Warrior.in the yard at Tyseley.

The Unknown Warrior stands in the yard at Tyseley Locomotive Works, 4th February 2016. Photos by Kevin West

Engineering Update - Jan 2016

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations.

Engineering update - December 2015

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations. The construction of a steam locomotive of any size is a complicated engineering task and the past few weeks have proved to be just that. While it may appear that not a lot is happening above the surface, in fact the 8 legged duck is paddling furiously although perhaps not all in the same direction!

Engineering Update - October 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

The Unknown Warrior takes a rest at Donnington Services during its movement from Barrow Hill to Tyseley, 29th September. Photo – Kevin West

The major work of permanent fitting the cylinders and Motion Brackets to the locomotive has been completed.

Engineering Report - August 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

The major work of permanent fitting the cylinders to the locomotive has been completed.

RH Motion Bracket with Bottom Slide Bar in place being drilled – Photo:- Gavin Shell

Engineering Report - June 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

The major work at present is the permanent fitting of the cylinders to the locomotive frame assembly.

Engineering Update - May 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

Engineering Update - May 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

Engineering Update - February 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

The Unknown Warrior is a 3 cylinder locomotive after the fitting of the right hand cylinder at outside Llangollen shed. 23rd January  2015

Photo – Kevin West

TUBEPLATE PROGRESS

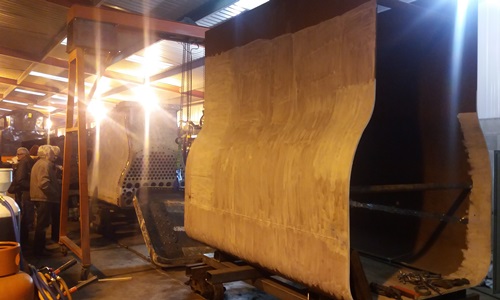

Progress continues on the construction of the boiler for The Unknown Warrior.

Latest work has included drilling the Firebox Tubeplate as seen here in this picture.

Picture - Oakwood Visuals

A full engineering update will follow next week.

Engineering Update - December 2014/January 2015

Locomotive Frame Assembly

The Unknown Warrior’s frost covered nameplate catches the sun outside Llangollen shed. 3rd December 2014

Photo – Kevin West

2014 review - HELP US FINISH THE JOB

We have now reached a major turning point in the construction of 'The Unknown Warrior's' chassis, with a change in emphasis from manufacture to assembly. Much still needs to be done but with the last of the major castings now complete we are turning our attentions to the myriad of smaller parts which will be required.

Engineering Update - October 2014

Locomotive Frame Assembly

45551 in the shed at Llangollen November 2014

Photo – Tom Peacock

New Bogie Wheel Cast

Less than a month from making the decision to manufacture a new wheelset for the locomotives bogie, rather than wait any longer for the possibility of a set from an 8F in Turkey, the first Wheel Centre has been cast.

The 3D CAD data was supplied to Premier Patterns by the project's CAD Designer, Kevin West and the pattern cut in a polyurethene foam.



Engineering Update - September 2014

Locomotive Frame Assembly

The Unknown Warrior on display in the mud at The Great Dorset Steam Fair

Engineering Update - July 2014

Locomotive Frame Assembly

Following the wheeling of the chassis at Tyseley Locomotive Works in late June the chassis was only display at the Tyseley Locomotive Works Open Weekend on 5th & 6th July, before moving back to Llangollen on Friday 11th July.

That one small sentence does not explain the effort and logistics involved to move the chassis the 80 miles between to two sites.

Full set of Cylinders for 'The Unknown Warrior'

'The Unknown Warrior' now has all three cylinders following casting of the second Outside Cylinder at Coupe Foundry, Preston, on 3rd July.

Engineering Update May/June 2014

'The Unknown Warrior' is Wheeled.

We realise that building a complex locomotive like the Patriot was never always going to be a straight forward exercise. The last few weeks have been interesting and challenging to say the least. From the outside it must have looked as though nothing was happening, but I can assure you it was a bit like a duck swimming across the lake, all calm above water, but below the legs are working furiously in all directions at the same time!

Engineering Update - April 2014

Work continues at Tyseley Locomotive Works on preparing to fit the axleboxes into the main frame. All the Horn Guides have been polished to remove machining marks and the corners radii added by hand. All this has been completed to the usual high standard expected from Tyseley.
The Axleboxes have had the brasses pressed in and the journals have been machined to the size of the axle. The bronze wearing faces are now being machined to the sizes determined from the frame assy.
